PRODUCT OVERVIEW
The Filbico Radar ASTERIX Analyzer 2nd edition (RAXA2) with SALSA software (Scalable Asterix Listener, Simulator and Analyzer) is a modern toolset to radar data testing and evaluation. The solution is dedicated to civil and military air traffic management systems as well as military air surveillance systems.
ENSURES
Radar data processing and presentation
-
Automated radar detection and configuration
Automated and manual scenario configuration (receive, recording, presentation etc.)
ASTERIX data graphical and tabular presentation
Radar data, ADSB, MLAT (all including Mode S) and weather data analysis and presentation
Radar sensor performance analysis (probability of target position detection)
Surveillance data received in ASTERIX protocol presentation (icons, labels)
Monoradar service messages processing (north marker's, sector crossing's etc.)
Mode S data processing (GICB and Extended Squitter registers)
Plots, tracks, strobes presentation and labels configuration
Online and offline data processing and filtration
Presented tracks, plots, strobes and radar sources colors adjustment

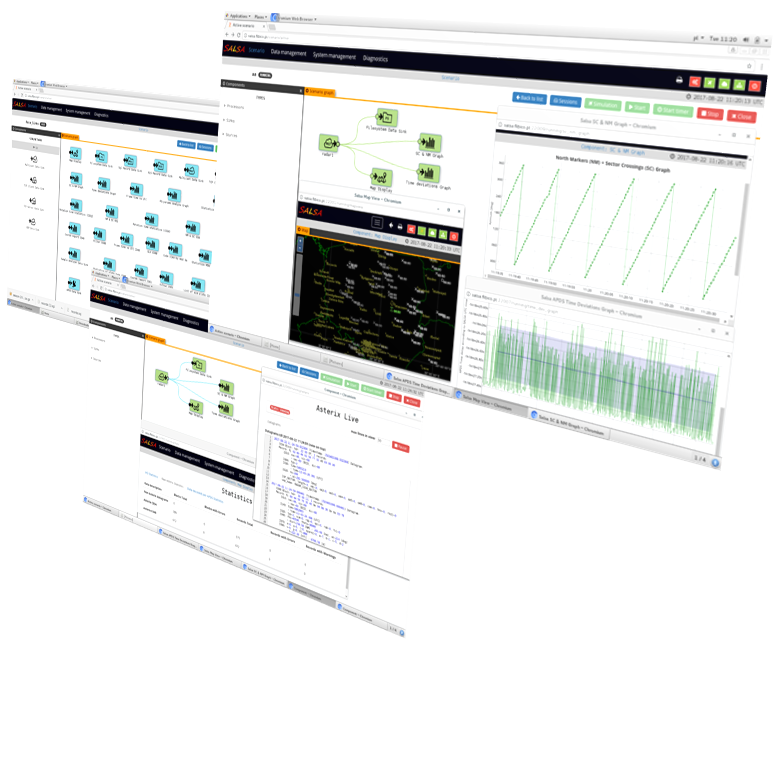

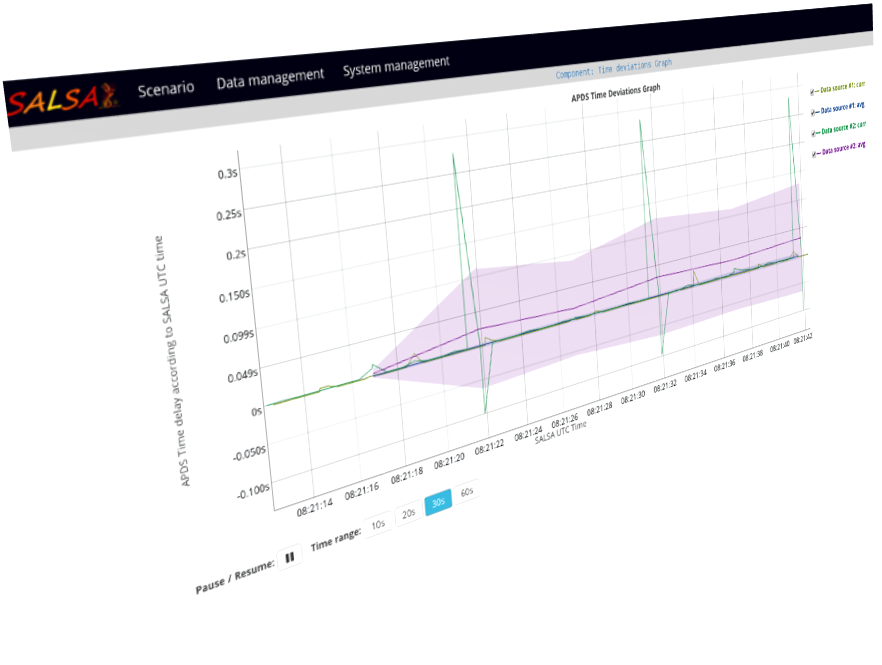

Statistical data concerning received tracks, plots, strobes data presentation
Radar data monitoring, analysis
-

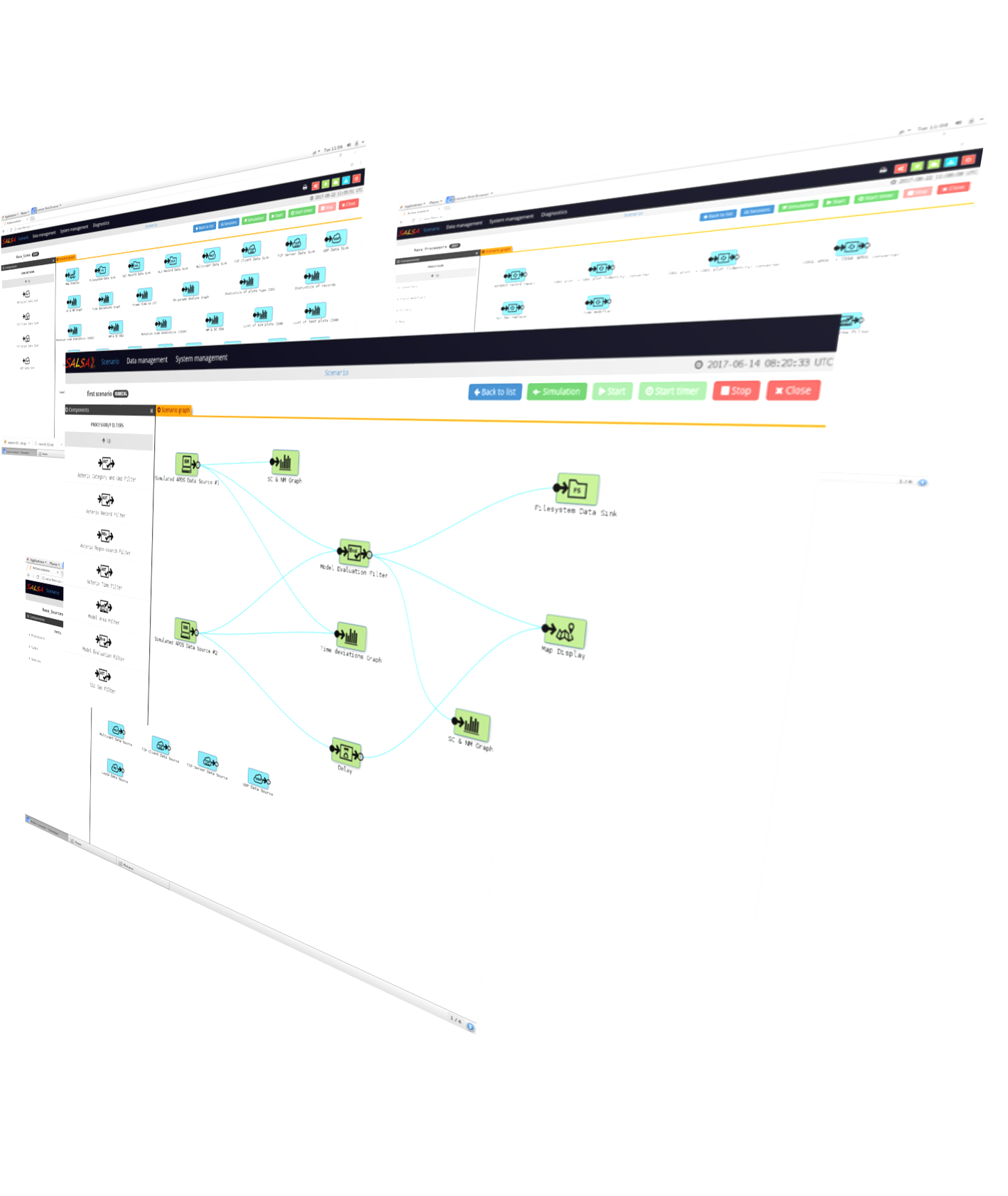

Modern and flexible open component architecture (source, processor, sink components)
ASTERIX data conversion between categories and formats
ASTERIX version editor and new categories creator (including backup/restore)
ASTERIX analysers
- many components provided out of the box
- editor for creating new analyzers (components)Rich in statistical reports, analyses and graph generation
Simulator
-
Simulated trajectories graphical editor
Customizable ASTERIX output
Realtime modification of simulated aircraft parameters
Surveillance data in the form of targets, monitoring messages (north marker's, sector crossing's) etc.
Map background
-

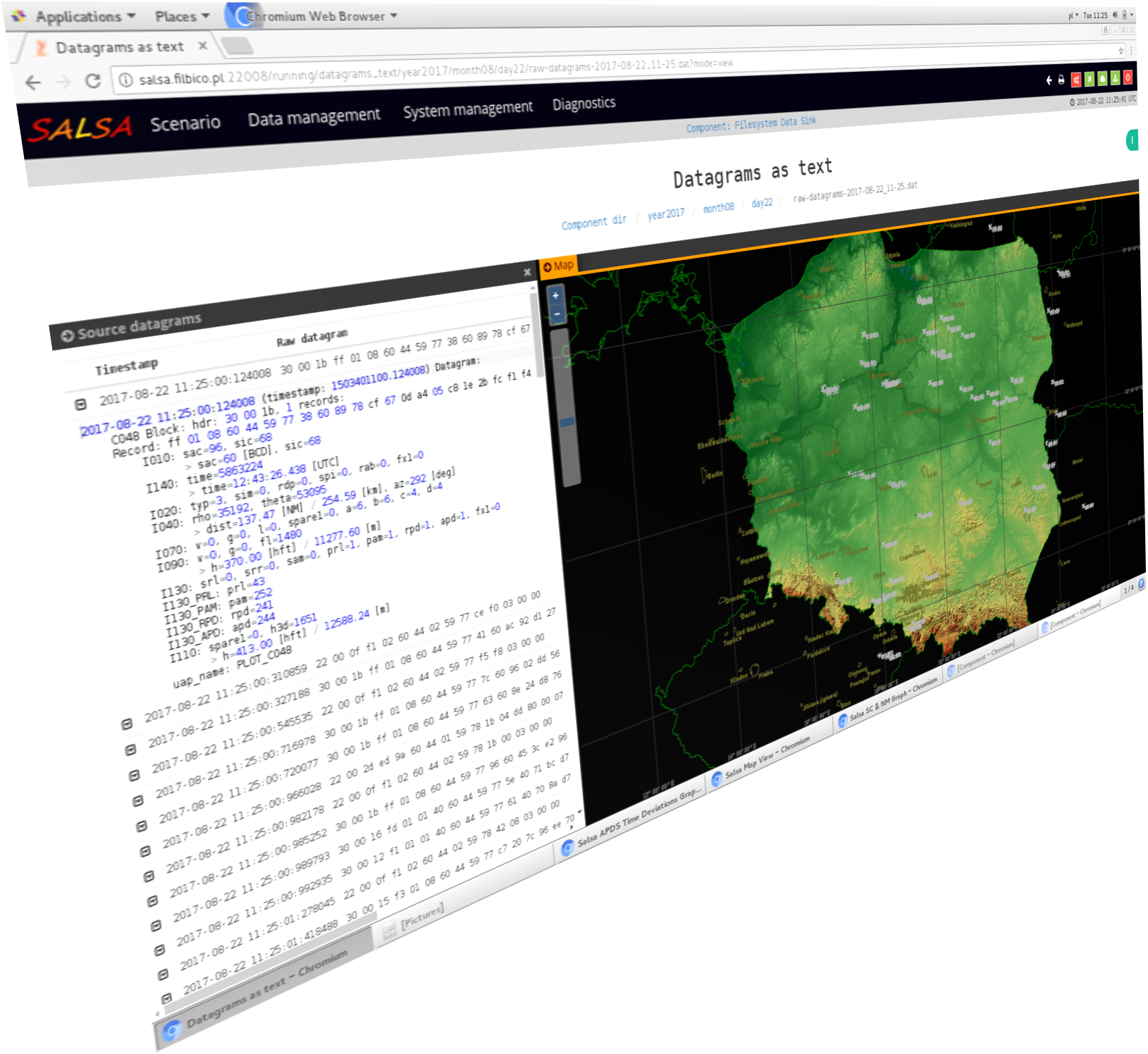

Import and presentation of vector and raster map data
Supporting tools
- cursor coordinates display and distance measurement
- map layers display and description configuration
- map operations (scroll-in, scroll-out, zoom-in, zoom-out etc.)
Record and replay
-
Independent recording/replay of multiple data sources/streams
Simultaneous recording and presentation of currently received data
Graphical and tabular presentation
Import/export from/to external formats
COMMUNICATION
- INTERFACES
- RS-232/422 (x2)
- Ethernet 10/100/1000Base-T (x2)
- Ethernet IEEE 802.3ab
- PROTOCOLS
- RFC768 UDP
- HDLC FRAME
- HDLC LAPB
TECHNICAL PARAMETERS
| TECHNICAL PARAMETERS | |
|---|---|
| SOFTWARE ENVIRONMENT | CENTOS 7 OPERATING SYSTEM |
| DELIVERY | COMPUTER WITH INSTALLED OPERATING SYSTEM AND SALSA SOFTWARE |
| SOFTWARE LICENSE | DVD (recovery) |

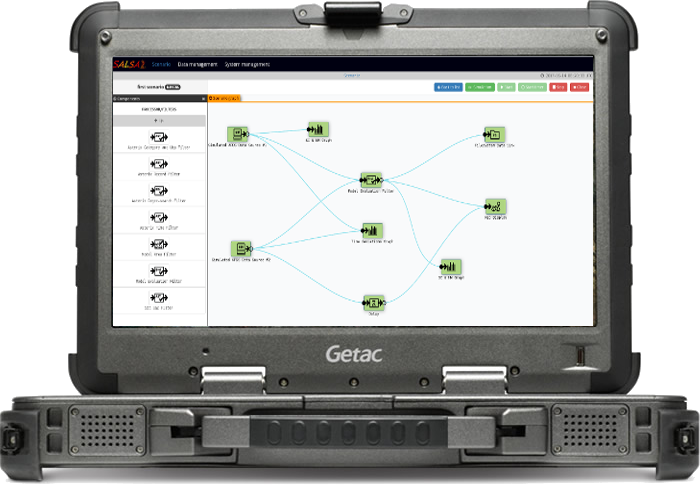

| HARDWARE | GETAC X500-G2-Basic_XB7SZ5CSEDXX WITH : - procesor Intel® i7-4810MQ - HDD OPAL 2.0 512GB SSD |
